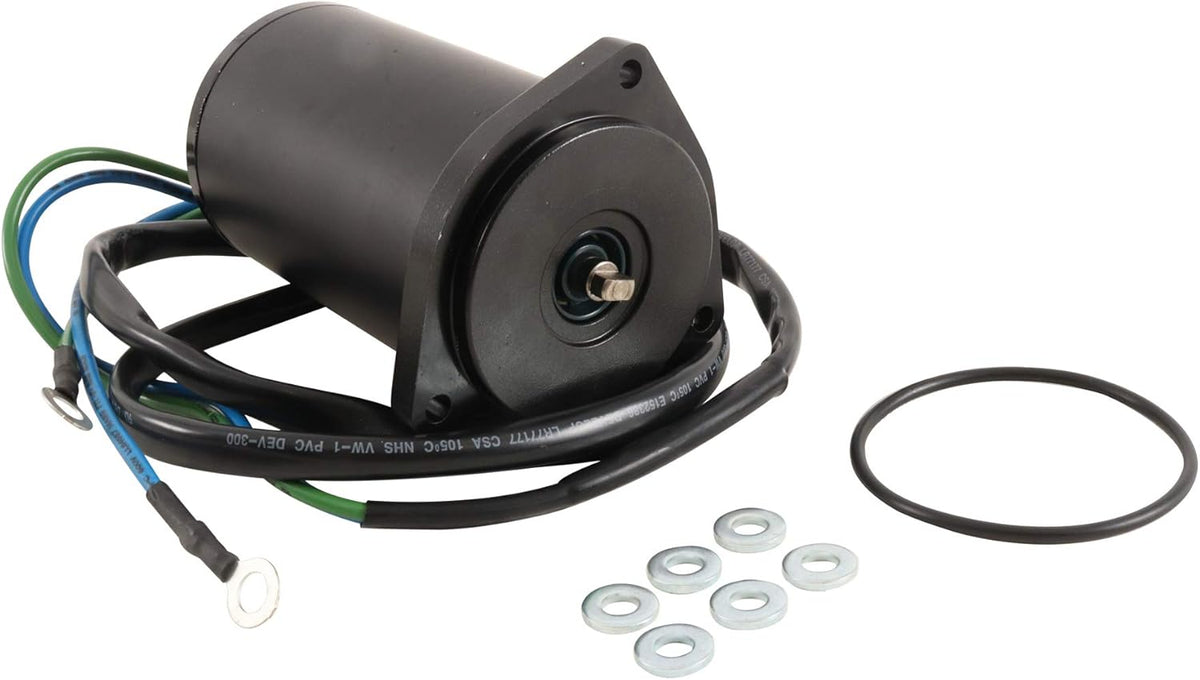

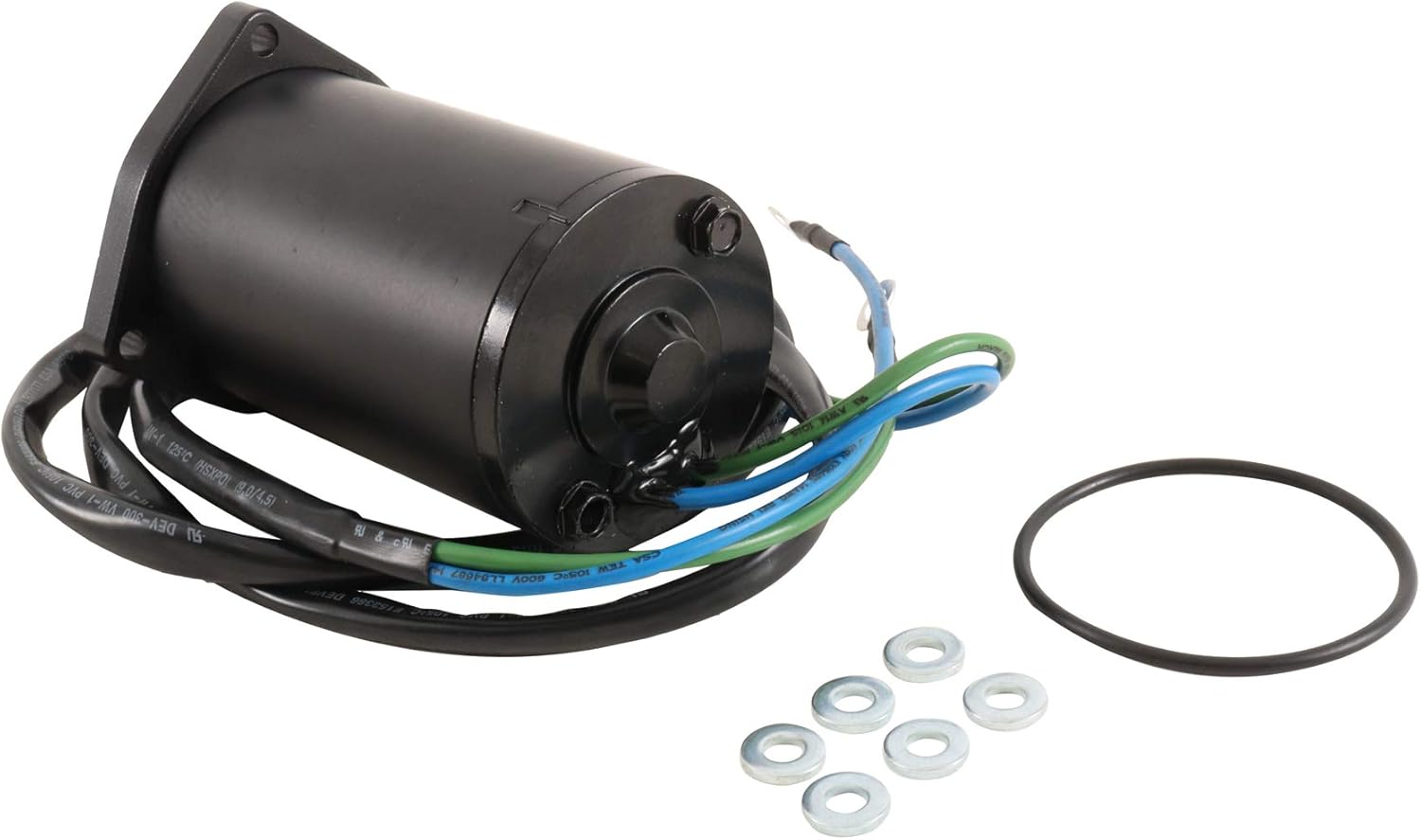

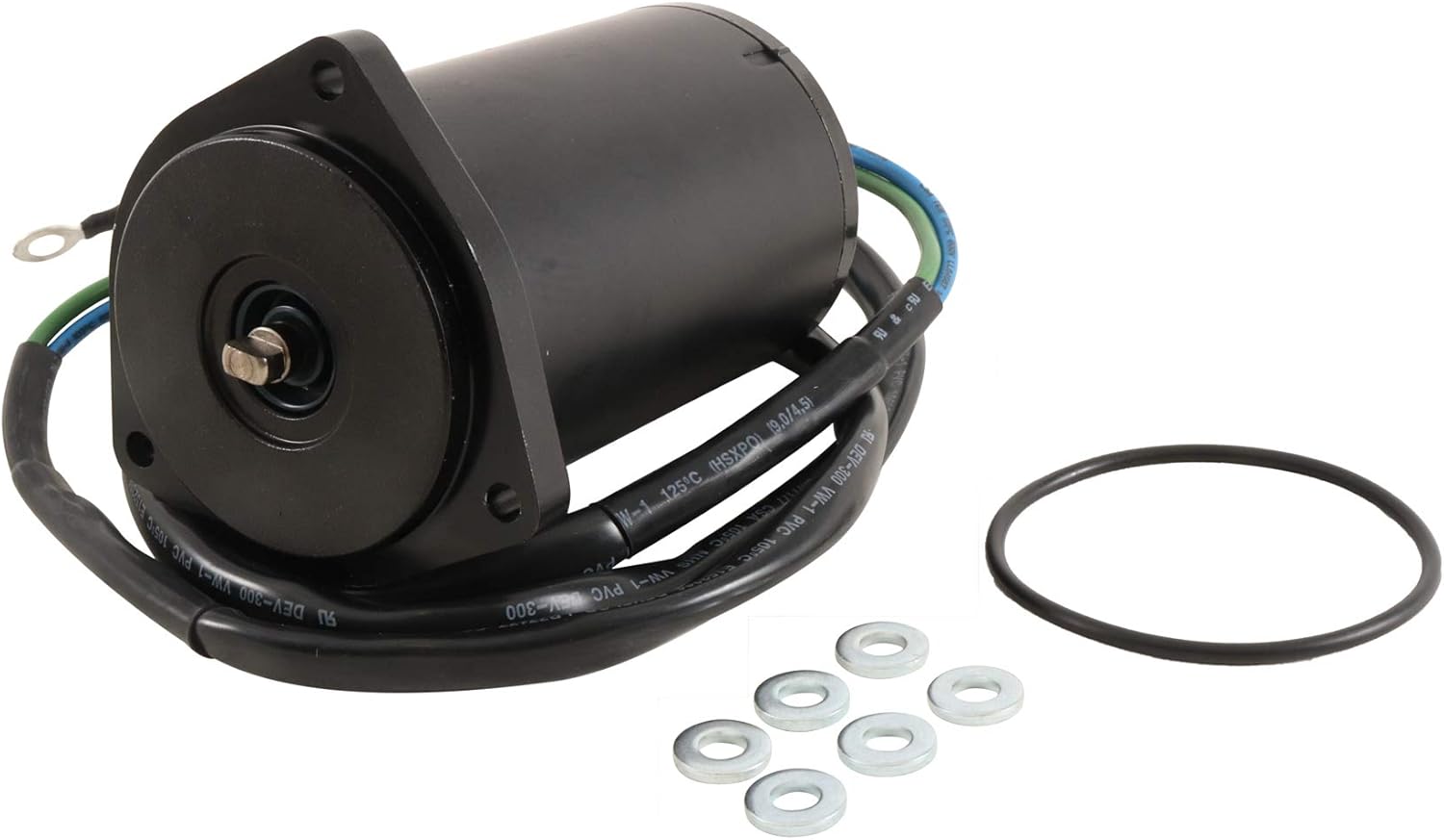

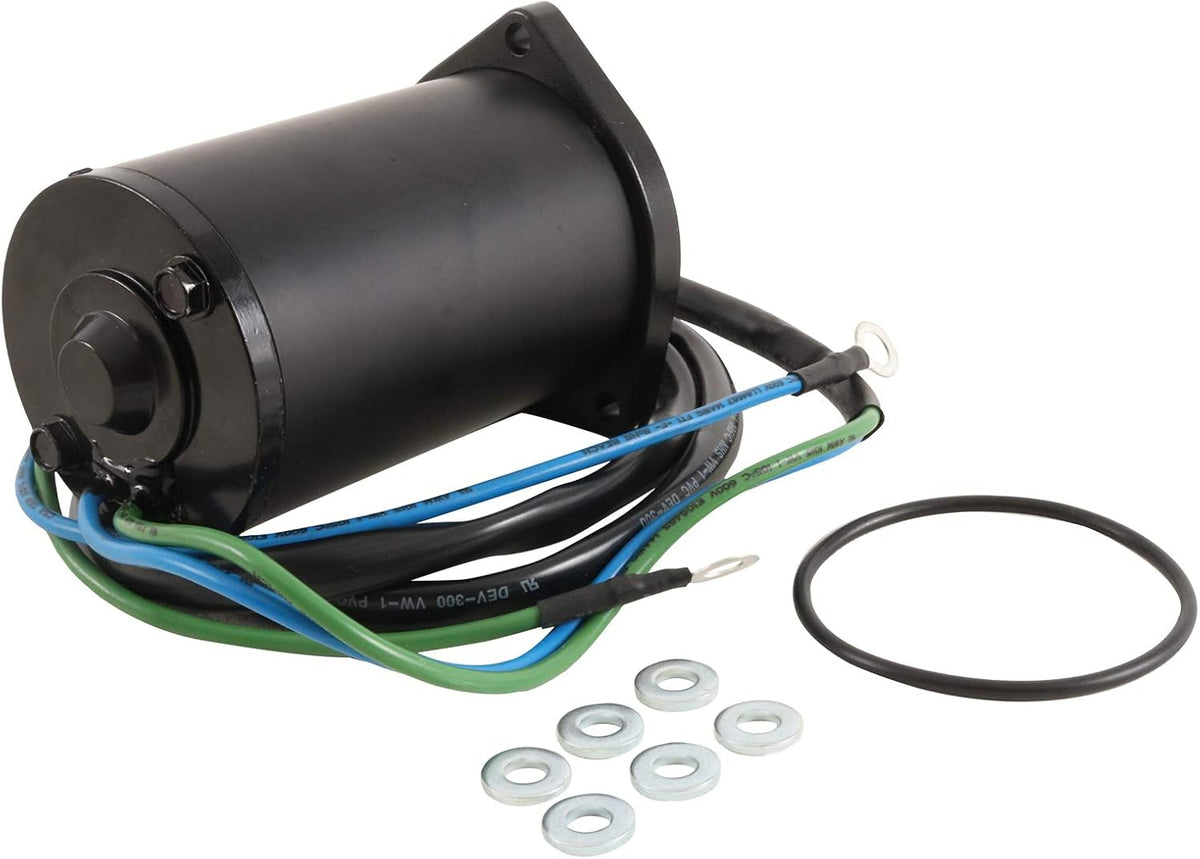

Tilt Trim Motor Z3661
Sale price
$14.50
Regular price $51.84
Skip to product information
Specs : Unit Type : Tilt & Trim Motor, Voltage : 12
Compatible with/Replacement for API MARINE : PT611NM, ARCO MARINE : 6266, ARROWHEAD : 430-22048, BARSANCO : 540-10833, EMP PARTS : 4-6789, EMS : 49-6226, J & N : 430-22048, LESTER : 10833, MALLORY : 9-18401, MES MOTORCYCLE & MARINE : T1165M, MINNPAR : 67-3141, MP PARTS : 4-1262, PIC : 107-133, SIERRA MARINE : 18-6789, WAI : 10833N, WILSON SMALL ENGINE : 74-35-10833, YAMAHA : 62X-43880-00-00, 62X-43880-01-00, 62X-43880-09-00
1-year warranty protects you after your purchase
100% New aftermarket Tilt & Trim Motor built to meet OEM specifications
Tilt Trim Motor Z3661
Sale price
$14.50
Regular price $51.84
Shipping calculated at checkout.
Specs : Unit Type : Tilt & Trim Motor, Voltage : 12
Compatible with/Replacement for API MARINE : PT611NM, ARCO MARINE : 6266, ARROWHEAD : 430-22048, BARSANCO : 540-10833, EMP PARTS : 4-6789, EMS : 49-6226, J & N : 430-22048, LESTER : 10833, MALLORY : 9-18401, MES MOTORCYCLE & MARINE : T1165M, MINNPAR : 67-3141, MP PARTS : 4-1262, PIC : 107-133, SIERRA MARINE : 18-6789, WAI : 10833N, WILSON SMALL ENGINE : 74-35-10833, YAMAHA : 62X-43880-00-00, 62X-43880-01-00, 62X-43880-09-00
1-year warranty protects you after your purchase
100% New aftermarket Tilt & Trim Motor built to meet OEM specifications
Applications:
YAMAHA Marine TILT & TRIM All Models 40-100 H.P. 1995-2003
Specifications:
Voltage: 12 Volts
Rotation: Reversible
Field Hsg OD: 63.6mm / 2.504in
Overall Length: 120.4mm / 4.740in
Shaft OD: 7.9mm / 0.311in
Shaft Notes: 4mm X 8mm Drive Tang
Approximate Weight: 2.68 lbs / 1.22 kg
Notes: FOR YAMAHA 40-100HP 1995-2003
2-WIRE CONNECTION (RING TERMINAL ENDS)
3-BOLT MOUNT
Replaces these part numbers:
API MARINE PT611NM
ARCO MARINE 6266
LESTER 10833
MALLORY 9-18401
REMY SMALL MOTOR RT05042
YAMAHA 62X43880-00, 62X-43880-00, 62X43880-01, 62X-43880-01, 62X43880-09, 62X-43880-09
