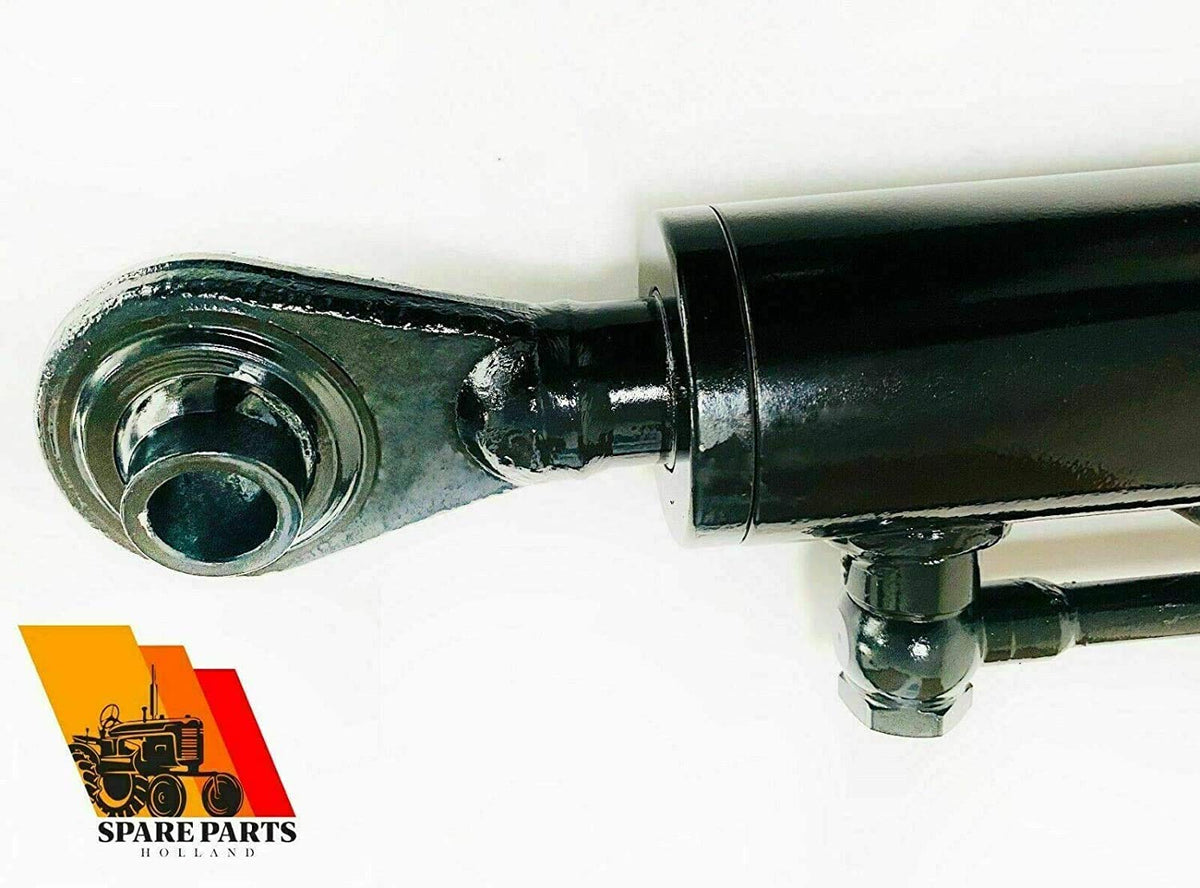

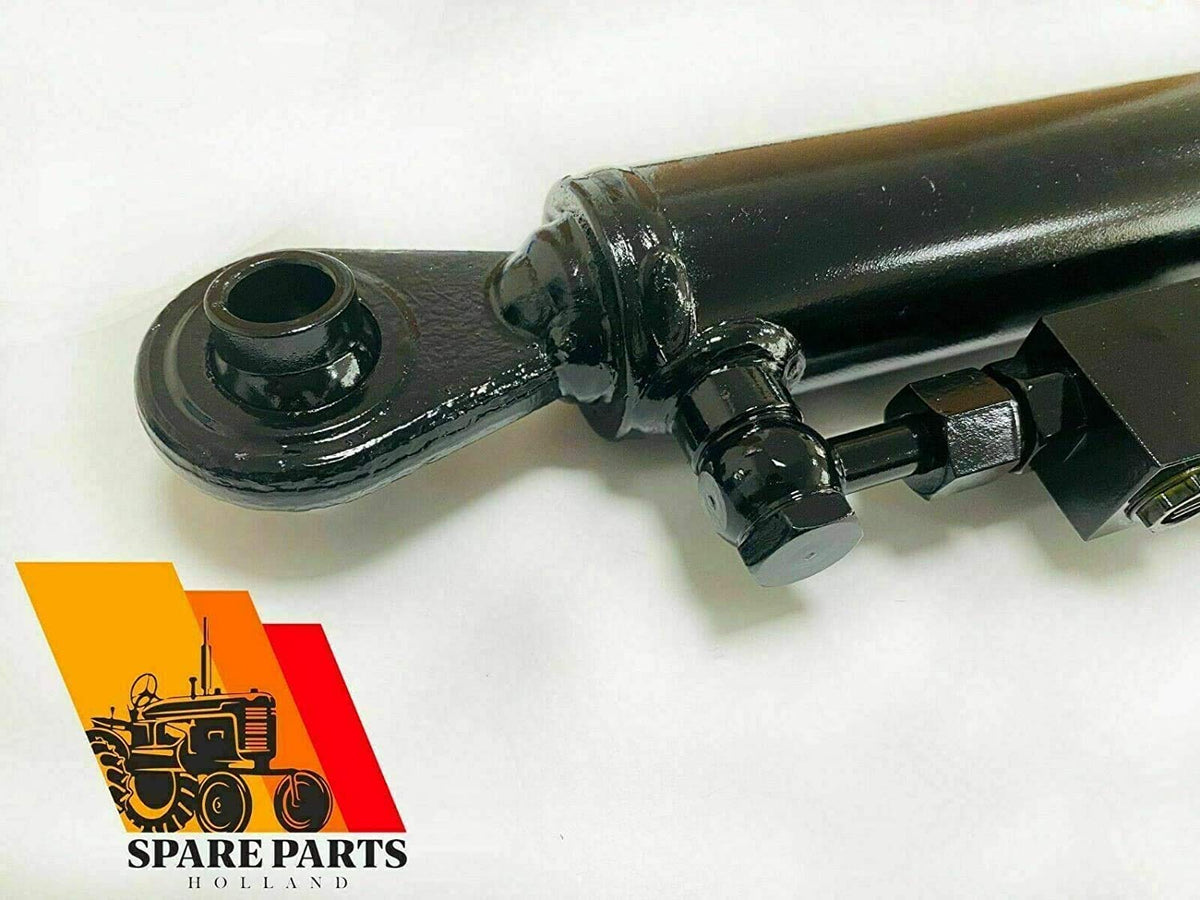

Hydraulic Top Link Cat. 2-2 with Locking Block G782114
Hydraulic Top Link Cat. 2-2 with Locking Block G782114

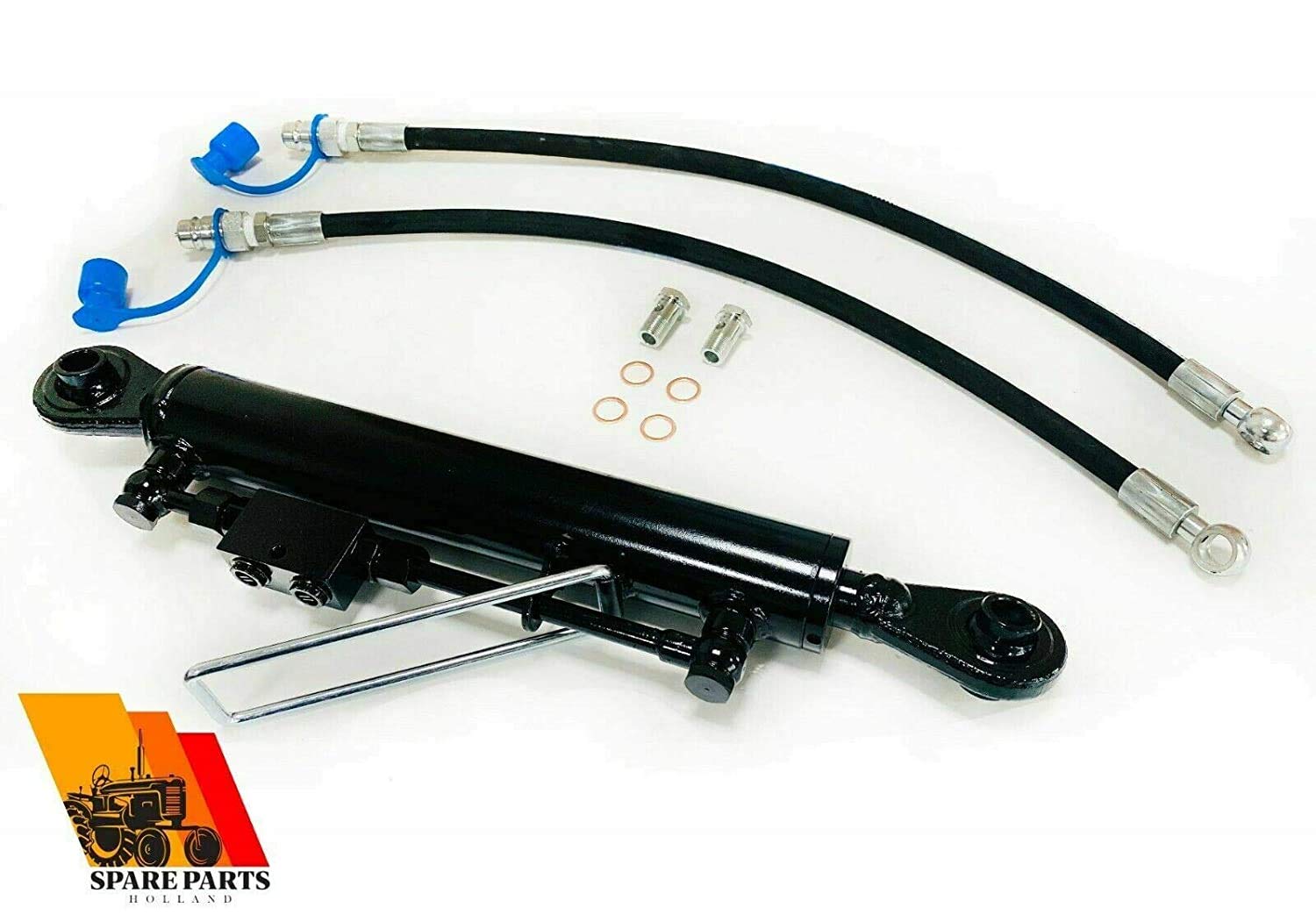

Including Hoses, Male Couplers with dust cover, Banjo Bolts,Washers

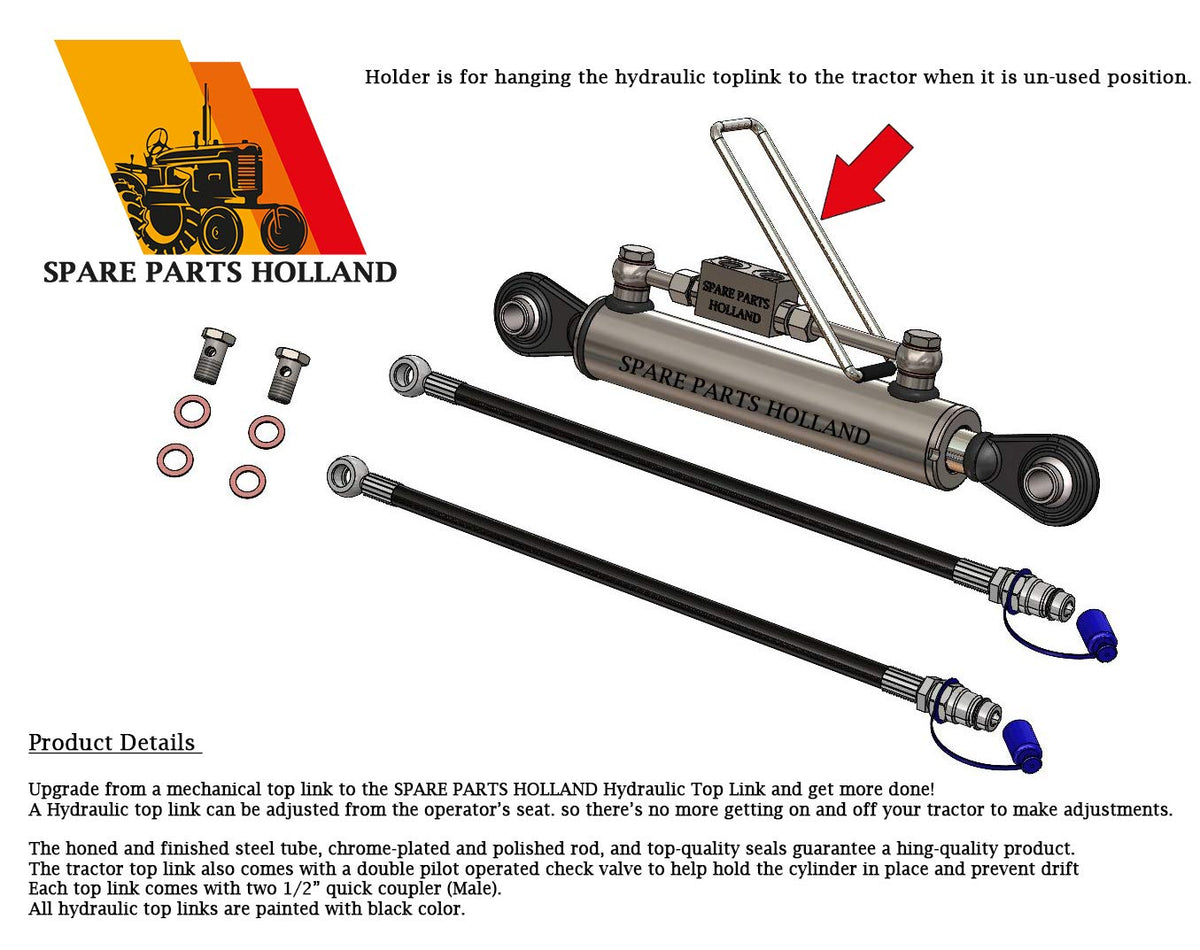

Holder to hold the unit when it is un-used
The piston rod can be rotated as needed
This top link is equipped with a locking block. With this valve, the oil is enclosed in the cylinder by a check valve
Painted Black Color (Rarely paint damages & Scratches during cargo)

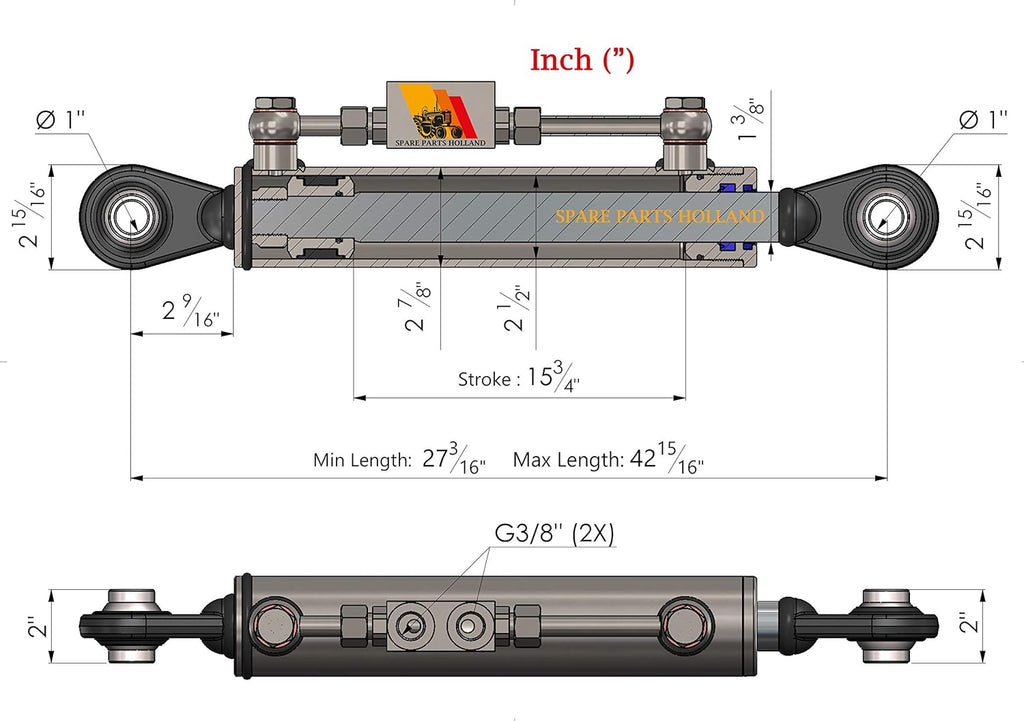

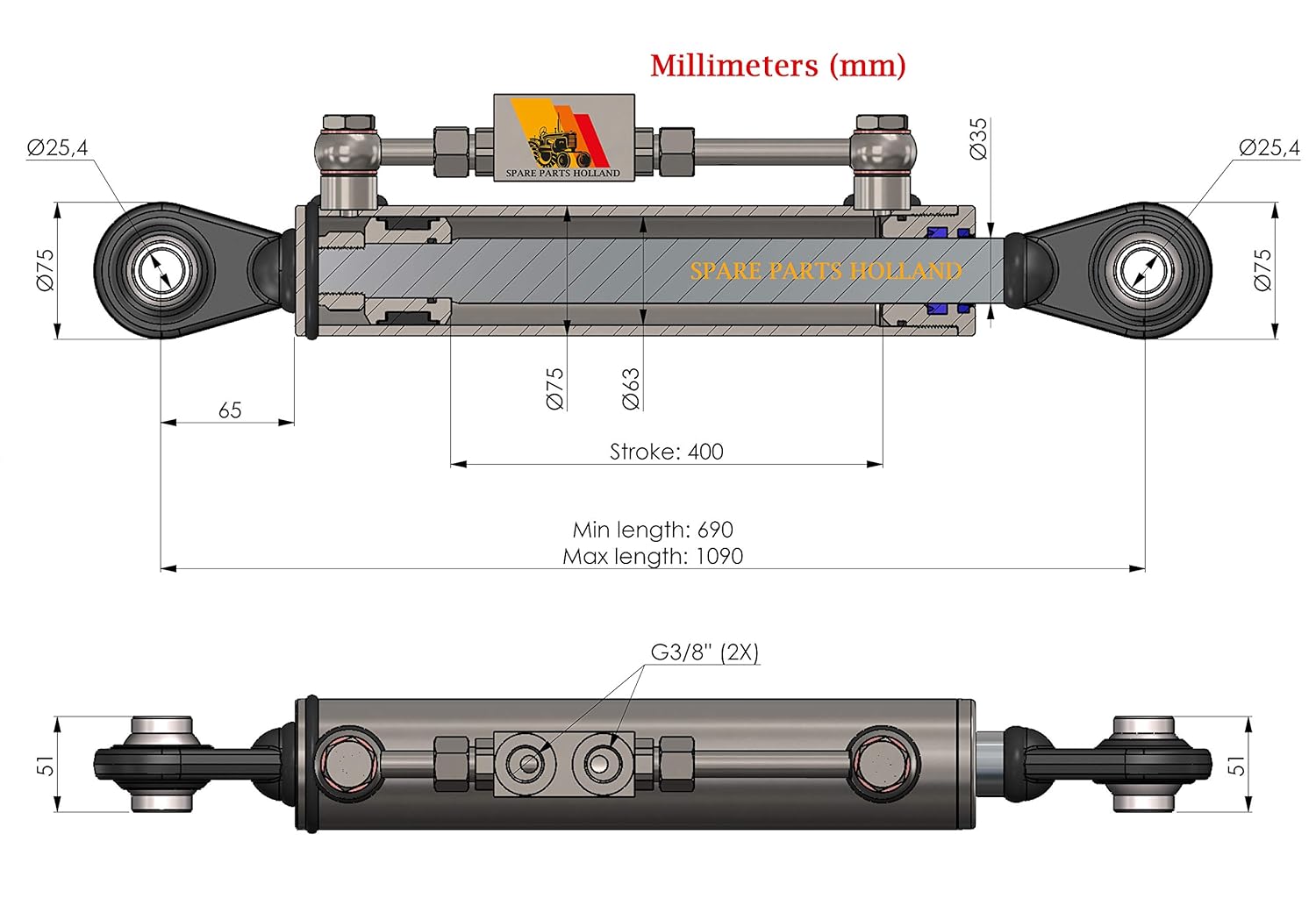

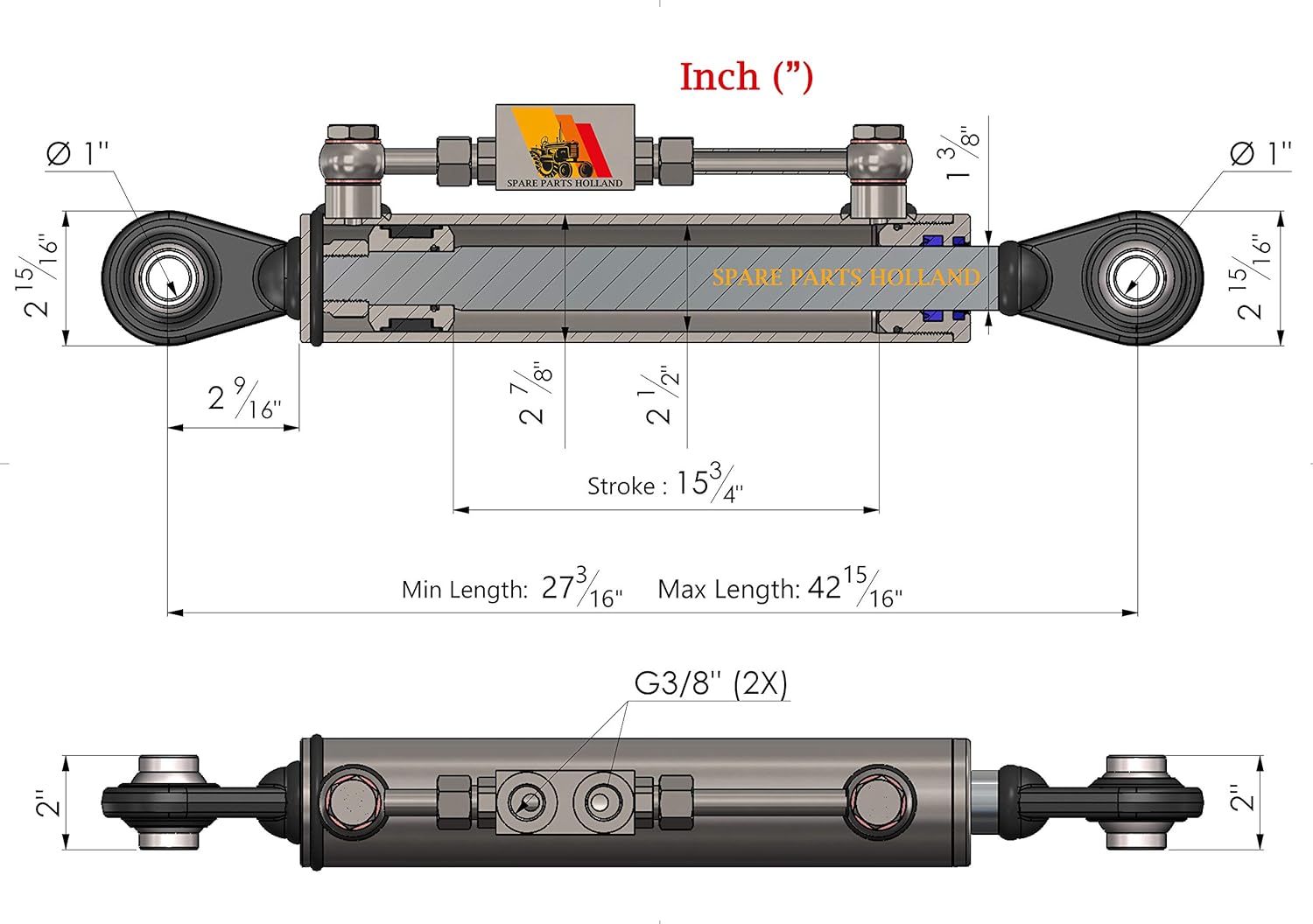

Hydraulic Top Link Cat. 2-2 With Locking Block 27 3/16�� - 42 15/16�� With 2 x Hose Description: Our offered hydraulic top link will be the already experienced top link on the tractor and preferably the work. A double-acting control valve on the tractor is part of it - in combination with its own locking block * an unbeatable combination. * With top link it is very important that the hidden setting position is also after the time has elapsed. This is hardly possible with top links without a locking block, as the tractor's control units do not lock so tightly. This top link is the view with a lock block related to the control. With this valve, the oil is released through a check valve in the cylinder. Only when the oil pressure from the tractor has returned and the valve and the cylinder adjust themselves. Furnishing: High quality and processes and painted Incl. Locking block Top link cat. 2 2x hydraulic connection Delivery instead of fully assembled Technical specifications: Hydraulic connection: 3/8 ' E: 690-10900 mm A: 63 mm W: 73 mm C: 35 mm J-M: 75 mm K-N: 51 mm H-L 25.4 mm F: 65 mm D: 400 mm Hydraulic pressure max. 200 bar Thrust: 4 to Pulling force: 2.5 to Weight about 15.90 kg + 2 x hydraulic hose with plug and dust cover Technical specifications: Connection: 12-L bulkhead size 3 (usual coupling connector), 18-1.5 SW22 nipple + union Hose designation Blau Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330 Operating pressure: 330 bar Length: 75 cm
